Nutrient Removing Filtration System® (NRFS™)

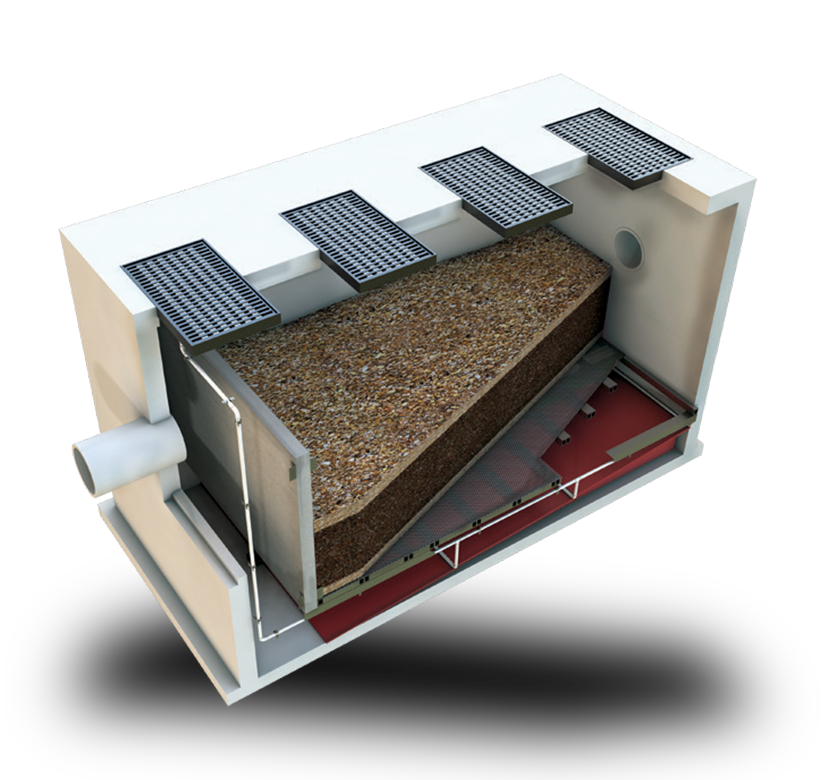

The NRFS or Nutrient Removing Filtration System is an engineered treatment vault for reduction of nutrients in storm water. Its orifice flow control maximizes contact time with the supplied Bold & Gold® media to remove nitrogen, phosphorus and TSS prior to discharge. The optional addition of the SkimBoss® MAX allows the NRFS to fully leverage Hydro-Variant Technology®, maximizing detention time and removal potential. The NRFS is ideal for pretreatment of rainwater prior to harvesting, LID, water quality improvement or post treatment following detention.
DENITRIFYING MEDIA TREATMENT
- Low maintenance: media removal not required for servicing
- Retrofits existing watersheds
- No organics to degrade and lose treatment capability
- Easy vacuum truck servicing
- Includes Bold & Gold biosorption activated filtration media
- Removes phosphorus, nitrogen, metals & TSS
- High flow rates: media does not clog
- No prefilters required
NRFS removal efficiencies up to:*
- 75% Nitrogen
- 95% Phosphorous
- 95% TSS
*Varies based on sizing & site conditions
LEED Credit Eligible:
4.1 ; 4.2 Materials & Resources Recycled Content
6.2 Storm Water Design / Quality Control
HydroSlide® Service System
The integrated HydroSlide service system enables the lower settling chamber to be easily emptied and the Bold & Gold to be back-flushed during servicing. No need to remove or replace the Bold & Gold for years. Furthermore, the HydroSlide system combined with vacuum truck eliminates the need for confined space entry.
- The NRFS functions without the use of prefilters affording a more cost effective and efficient solution. Bold & Gold biosorption media accommodates high flow rates and resists clogging.
- Storm water enters the NRFS and is directed underneath the media bed where it then flows upward through the Bold & Gold media.
- Vault sizing criteria enables optimal water contact time with the media for maximum removal efficiency of storm water pollutants.
WATER QUALITY ECO-FRIENDLY SUSTAINABLE
The NRFS removes both solids and dissolved contaminates for water quality improvement projects. Equipped with the innovative HydroSlide system and supplied exclusively with Bold & Gold biosorption activated media, maintenance, debris and nutrient removal is easy and efficient without the need for confined space entry. High phosphorus and nitrogen levels can compromise ecosystem integrity and human health. Bold & Gold media is an ideal media for pretreatment prior to rainwater harvesting or post treatment following detention prior to discharge.
- Water Quality Improvement
- Pretreatment Prior to Rainwater Harvesting & Reuse
- Low-Impact Development
- Agricultural Runoff Nutrient Reduction
- Treatment Post Detention Areas
SkimBoss MAX (Optional)
The optional SkimBoss MAX increases detention time to boost sediment capture and prevents floating solids and liquids from passing through the vault.
- Hydro-Variant Technology allows for hydraulic grade adjustments based on flow variations.
- Custom standoffs create a gap between the skimmer bottom and shelf to allow water flow while increasing detention time for maximum sediment capture.
- Polyurethane coated fabric seals at each end of the skimmer lightly press against the track system surface to block passage of floating hydrocarbons.
NRFS + BOLD & GOLD
About Bold & Gold Media
Bold & Gold is a Biosorption Activated Media (BAM) used for pollution control to reduce nitrogen and phosphorus levels in storm water. Bold and Gold creates sorbent surface bonds to establish a media nutrient cycle that actively captures and consumes nutrients, while promoting denitrification. High levels of phosphorus and nitrogen can compromise ecosystem integrity and human health. Bold & Gold Media is an ideal media for pre-treatment prior to rainwater harvesting or post treatment following detention prior to discharge into receiving waters.
- Variety of sizes and blends available
- Economical and lower cost than other media
- Made from recycled materials
- Sustainable: Long lifespan
- High surface area: High media contact time
- No biological toxic effects
- Physical filtration for removal of solids
- Sorbent surface bonding for the capture of dissolved nutrients and pollutants
- Biological activity including nutrient based capture, consumption and denitrification
Bold & Gold successfully removes:
- Up to 95% Total Phosphorous
- Up to 75% Total Nitrogen
- Up to 95% Total Suspended Solids
Nitrogen & Phosphorous Credits
Use Bold & Gold in BMPs for phosphorous and nitrogen reduction credits in the following programs:
- ERP (Environmental Resource Permit)
- TMDL (Total Maximum Daily Load)
- MS4 (Municipal Separate Storm Sewer System)
- BMAP (Basin Management Action Plans)
- Net Improvement
