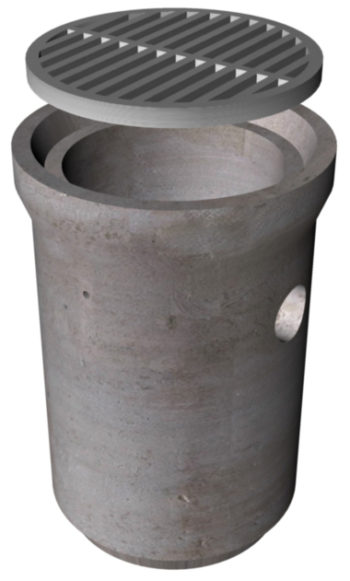

Area Drain 18″ dia. x 48″

Area Drains are designed to collect excess rain and storm water runoff from roofs, sidewalks, parking lots, and paved streets.

• Single Piece Construction
• Base/Bottom Section
• Knock-outs and Block-outs
• Riser Sections
• Top Sections
• Frames and Grates
• Rings and Covers

• Offers rugged durability for optimal drainage and access to vital connections
• Customizable sectional design
• Quick and easy install
• Durable construction with openings for pipe connection points
• Available with a flat top or joint key way for increased watertight performance
• Variety of sizes available
• Available in multiple locations to accommodate various connection sizes and elevations
• Round or rectangular shapes available per design specifications
• Knock-outs are easily broken with a hammer for a desired fit
• Elevate access to accommodate for varied depths
• Variety of sizes available
• Area or grate inlet design type options:= Frame and grate access= Concrete slab top with manhole access= Five-sided with block-outs= Optional rebar dowels
• Curb inlet top sections install flush with curbsides to allow stormwater to flow into the underground system= Available with grate access or manhole ring and cover access
• Our frames and grates prevent debris from entering a storm water management system
• Grid configuration grates or series of bars grates available
• Material: galvanized metal or cast iron
• Wide variety of custom and standard sizes available
• Maintenance and inspection accessibility
• Variety of sizes available
• Available covers include: manhole frames with cast or ductile iron covers
• Meets the following criteria:= ASTM C 478 specifications= AASHTO HS-20 live load criteria= NPCA & ACPA certifications

Model: Area Drain 18" x 4'-0"

Material: Concrete

Load Rating: area-drains

Height: 4’

Width: 1’ 6”

Diameter: 1’ 6”

Weight: 1035 lb

Downloads

PDF: 020-AREA-DRAIN.pdf

DWG: 020-AREA-DRAIN.dwg
