Grease Interceptor 5500 Gal

Fats, Oils and Grease (FOG) are generated at food service establishments (FSEs) as a byproduct of food preparation activities. When FOG enters the sewer system it begins to cool and solidify, reducing conveyance capacity and blocking flow. Often time this leads to sewer overflows and spills which put the health and safety of the public at risk. Grease interceptors have played an important role in preventing accumulated FOG from damaging the public infrastructure by collecting it at the source. Grease interceptors, when combined with Best Management Practices (BMPs), will significantly reduce the amount of FOG entering the sewer system.

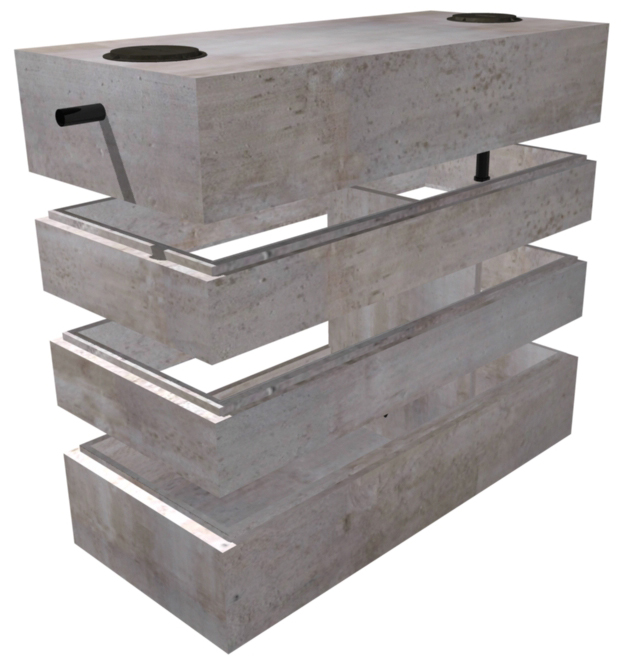

• Modular Construction
• Base/Bottom Section
• Sludge weirs, Oil weirs, and Outlet weirs
• Lids and Top Sections
• Riser Sections
• Frames and Covers
• Embedded Lifters
• Grade Rings and Risers
• Knock-outs and Block-outs

• Rugged durability to efficiently slow down the flow of waste water and remove grease, fats, and oil byproducts before flowing into a sanitary sewer system
• Customizable sectional design
• Quick and easy install
• Sturdy five-sided watertight design
• Customizable with special accesses, block-outs, and knock-outs
• Variety of shapes and sizes available
• Precast weirs are fitted in the base section
• Create the barrier to capture byproducts
• Your project requirements will determine the number of weirs installed
• Cover and protect
• Maintenance and inspection accessibility
• Variety of shapes and sizes
• Variable access opening sizes and locations offered
• Elevate access to accommodate for varied depths
• Variety of sizes available
• Variety of sizes and shapes
• Rectangular frames and galvanized covers or manhole frames with cast or ductile iron covers
• Allow for easy install
• Galvanized steel material
• 2, 4, 8, and 20 ton loading capabilities
• 1 ton universal lifters also available
• Elevate access opening covers to grade
• Available in rectangular and round shapes
• Available in multiple locations to accommodate various connection sizes and elevations
• Round or rectangular shapes available per design specifications
• Knock-outs are easily broken with a hammer for a desired fit

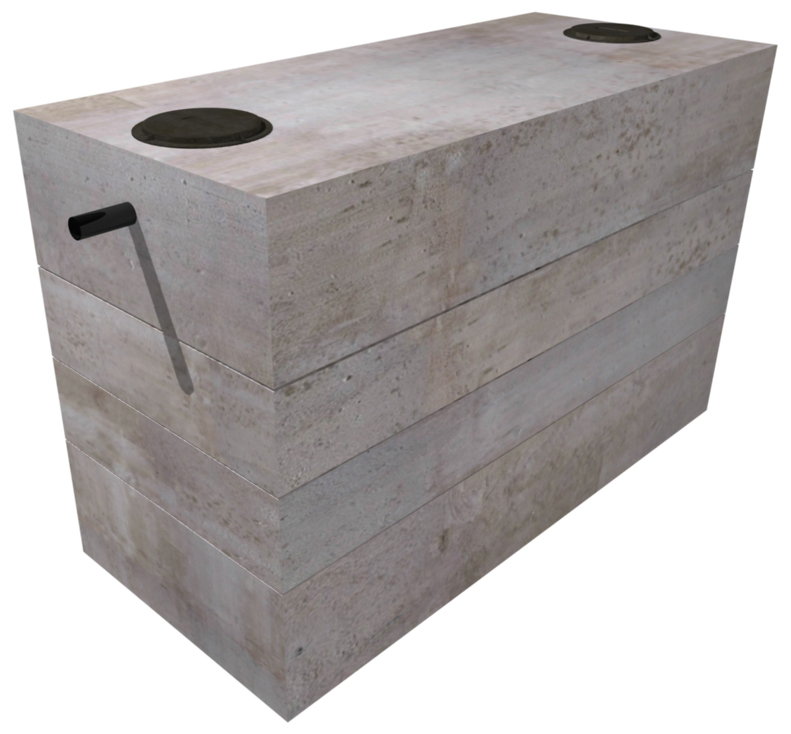

Model: GI-5500

Material: Concrete

Measurement System:

Height: 9’ 6”

Width: 6’

Length: 15’

Weight: 60190 lb

Downloads

PDF: 5594_TX_HOU_5500_GI.pdf

DWG: TX_HOU_6x15x9_5500-Gallon-Grease-Interceptor_55941-1.dwg
